STACO CO series

is composed of three main components: conductive access panel, conductive bolted stringer and pedestal.

The System

STACO Conductive Panel is conductive vinyl tile as surface bonded one-to-one alignment to the access panel.
Copper strips are taped at 2 side of the access panel before bonding conductive vinyl tile to the panel.
Size: 600 mm x 600 mm (special run 24" x 24")

Conductive Panel

Conductive Stringer
Galvanized square steel tube stringer topped with vinyl strip on top. Copper strip wrapped the vinyl strip at center as interface of conductive panel and steel stringer.

Access floor can be
Colorful & Resilient

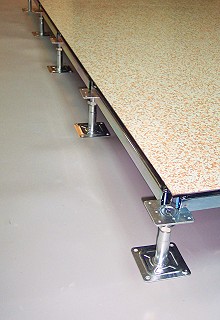

Pedestal (FFH 80 mm ~ 1200 mm)
Galvanized steel. Square base plate rigidly glued to the sub-floor.

Installation: Same procedure as standard access floor installation. Earthing wire connected one point within every 4 meters, approx. 18 sq. meter or 200 SF (i.e. every 7 pedestals need one earthing point). Earthing at pedestal for static dissipation shall be installed and inspected by licensed electrician. The conductive stringer is patented and, to ensure conductivity, shall be supplied by the manufacturer together with STACE CO conductive panel.

STACO CO series specifications

Panel size: 600 mm x 600 mm (special run 24" x 24")

System	Vinyl tile Thickness	Conductive wear-layer	Anti-Static ASTM D257	Abrasion loss ASTM D4060	Concentration Load: bare panel	Grid Structure	FFH	System Weight per Sq. meter
CO20-1000	2.0 mm	2.0 mm	10⁴ ~ 10⁶ ohm	< 0.01 mm	1000 LB depression < 2.0 mm	conductive Stringer	80 mm ~ 1200 mm	Avg. 48 kg / m²
CO20-1250	2.0 mm	2.0 mm	10⁴ ~ 10⁶ ohm	< 0.01 mm	1250 LB depression < 2.0 mm	conductive Stringer	80 mm ~ 1200 mm	Avg. 51 kg / m²
CO30-1000	3.0 mm	3.0 mm	10⁴ ~ 10⁶ ohm	< 0.01 mm	1000 LB depression < 2.0 mm	conductive Stringer	80 mm ~ 1200 mm	Avg. 50 kg / m²
CO30-1250	3.0 mm	3.0 mm	10⁴ ~ 10⁶ ohm	< 0.01 mm	1250 LB depression < 2.0 mm	conductive Stringer	80 mm ~ 1200 mm	Avg. 54 kg / m²
