The System


STOCO AN45 is composed of three main components: anti-static access panel, bolted stringer and pedestal.



AN45 Anti-Static Resilient Panel
AN45 panel is access panel surfaced with Actile. The Actile is bonded one-to-one alignment to access panel. No trim at border.



Actile:

anti-static vinyl tile.



Total thickness: 4.5 mm.
Wear Layer: 1.0 mm thick homogeneous vinyl.
Access Panel: steel, light-weight cement in-filled.
Size: 600 mm x 600 mm (special run 24" x 24")

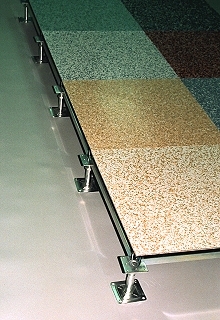

AN45 Panel

Access floor can be
 Colorful  & Resilient

Full piece Actile bonded on access panel, no trims at boarders of the panel. Un-restricted color matching


Stringer
Galvanized square steel tube stringer. Galvanized screw bolted to upper plate of pedestal. Shock-absorption PVC stripe taped on top. Eliminate noise and prevent air leakage.



Pedestal
(FFH 80 mm ~ 600 mm), Galvanized steel. Square base plate rigidly glued to the sub-floor.



Installation:
Installation procedure of AN45 is same as standard access floor. The steel grid system may be provided by local access floor contractor. Top of the stringer shall be taped with shock absorption stripe.


AN45  specifications

Panel size: 600 mm x 600 mm (special run 24" x 24")



System

Vinyl tile
Thickness

Anti-static
wear-layer

Anti-Static
ASTM D257

Abrasion loss
ASTM D4060

Concentration Load:
bare panel

Grid Structure

FFH

System Weight per Sq. meter

AN45-1000

4.5 mm

1.0 mm

106 ~ 109 ohm

< 0.01 mm

1000 LB
depression
< 2.0 mm

Bolted Stringer

80 mm ~ 600 mm

Avg. 53 kg / m2

AR45-1250

4.5 mm

1.0 mm

106 ~ 109 ohm

< 0.01 mm

1250 LB
depression
< 2.0 mm

Bolted Stringer

80 mm ~ 600 mm

Avg. 56 kg / m2
